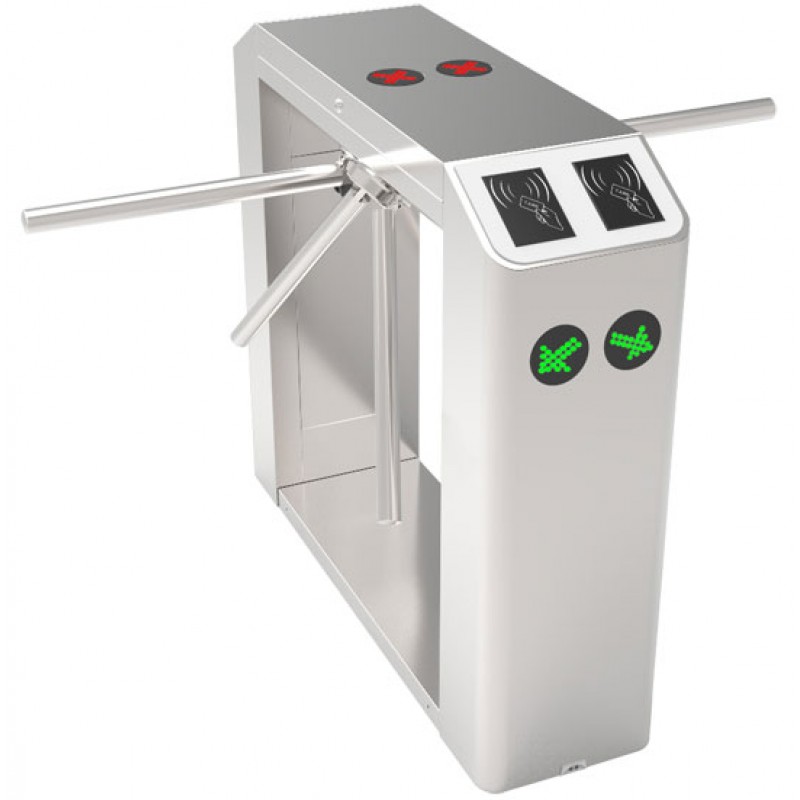

WARDEN Turnstiles WS2200

WARDEN Turnstiles WS2200

Tripod turnstiles are compact and cost-effective entrance solutions designed for smooth and silent operation, less wear and tear and reduced power consumption, suitable for areas where there is a large flow of people. The WS2200 series offer a well-designed, two-legged casework made of stainless steel, ideal for sites where large flows of people and robustness are issues.The WS2200 series has two passage channels in one casework, it is cost-effective for the application. On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. The status is shown on the led-way mode indicators on the top.Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism.In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators included as standard.

Specifications :


Power Supply      AC 220V/110V, 50/60Hz
Operating Temperature      -28℃- 60℃
Operating Humidity      5%-85%
Working Environment      Indoor/Outdoor(shelter)
Rated Power      60W
Flow Rate      25- 48 passage/minute
Ingress Protection      IP54
Casework Material      SUS304
Pictogram Indication      Yes
Control System      Input controlled by dry contact
Emergency Button Input      Yes
Dimension      111*98*32(CM) + arm length 50CM
Package Dimension      120*108*44(CM)
Net Weight      65KG
Gross Weight with Package      75KG
Optional Function      Alternative Material or shape, third-party access control integration,ticket system integration, passage counter
